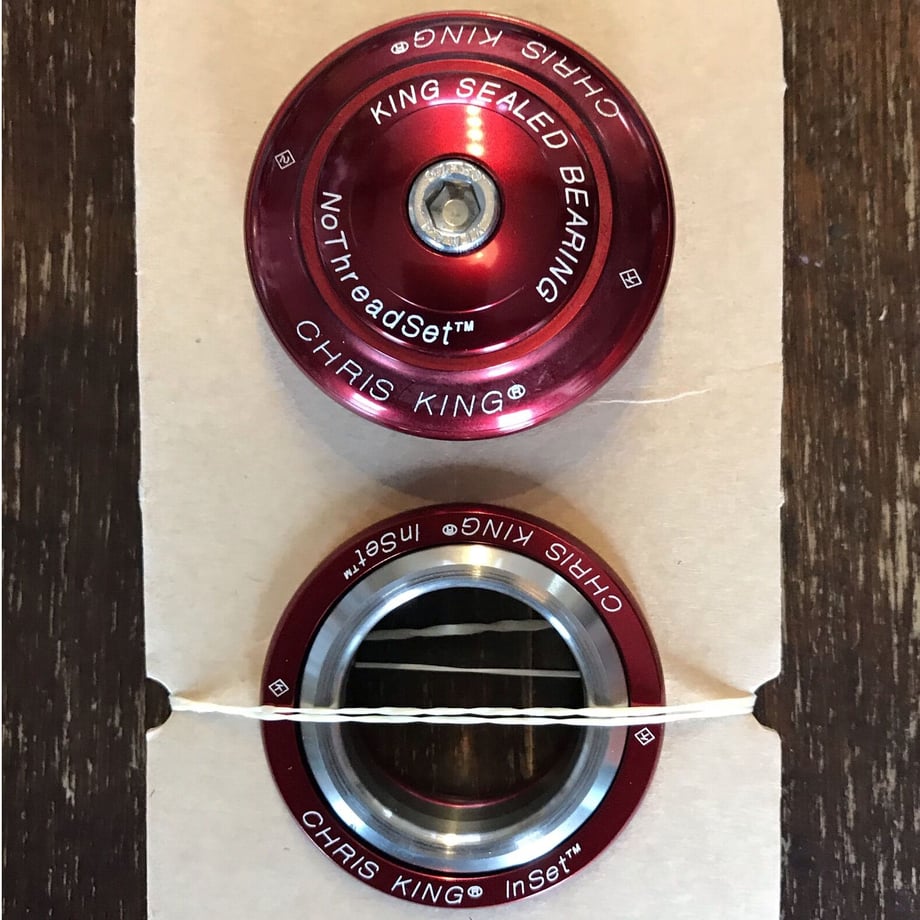

CHRIS KING
Type Internal
Headset Name I1
S.H.I.S. ZS44/28.6IZS44/30
Headtube Opening Upper Lower
Headtube I.D. 44.00 mm 44.00 mm
(+0.00, -0.05) (+0.00, -0.05)
Fork Steerer Tube 1-1/8" 1-1/8"
Fork Crown Seat O.D. 30.1 mm 30.1 mm
Stack Height 8.2 mm 4.2 mm
Min. Ream Depth 9.5 mm 9.5 mm
Stem Cap Bolt Torque 1.7Nm (15 in.lbs)
* upper stack height = upper cup + bearing cap.
* lower stack height = lower cup + baseplate.
Made in the USA
